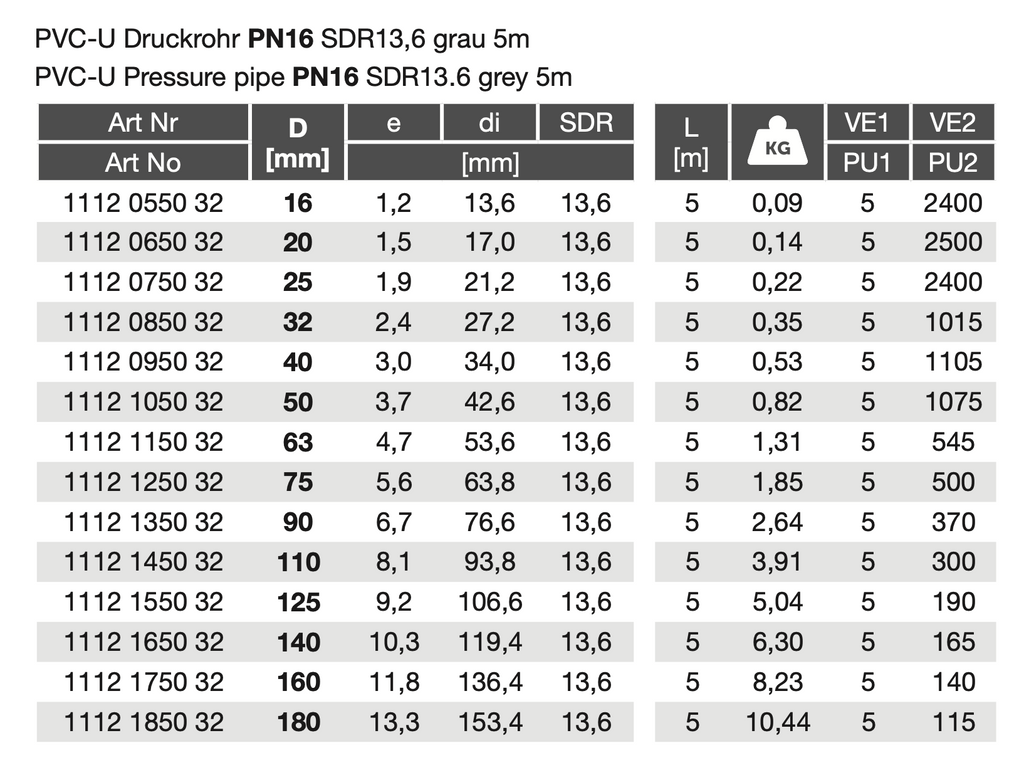

PN16 SDR13.6

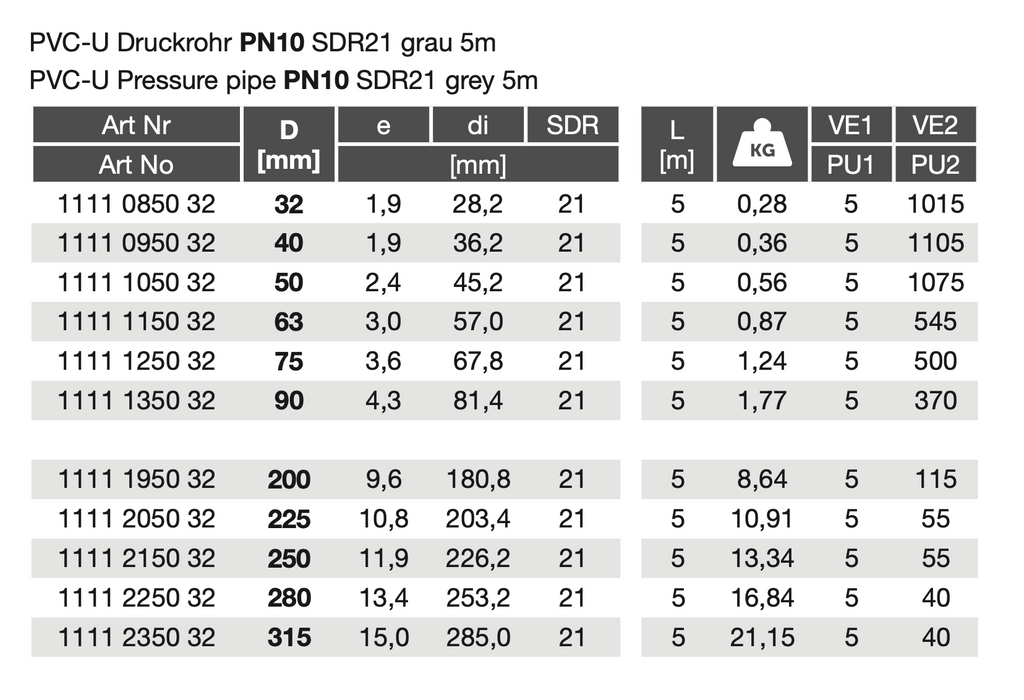

PN10 SDR21

price per meter (webshop: 1pcs=1m)

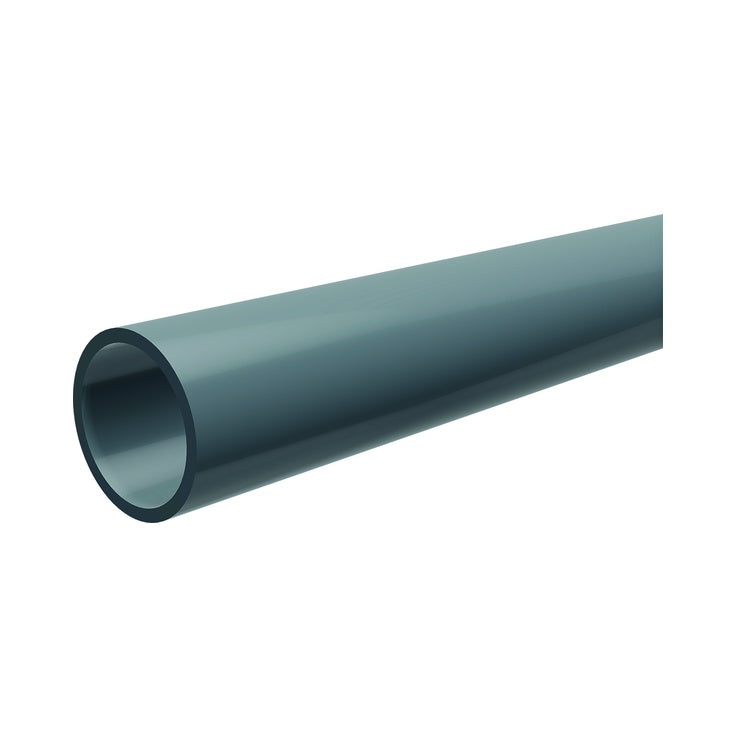

Description
PVC- ressure pipe, homogeneous single-layer, SD13.6/21, similar to A 7011 Iron grey. Useable for drinking water, drainage water and industrial applications.

Material
PVC- (unplasticied olyvinylchloride) without fillers. The material complies with the requirements of the KTW-BWGL guideline of the German Federal Environmental Agency (UBA).

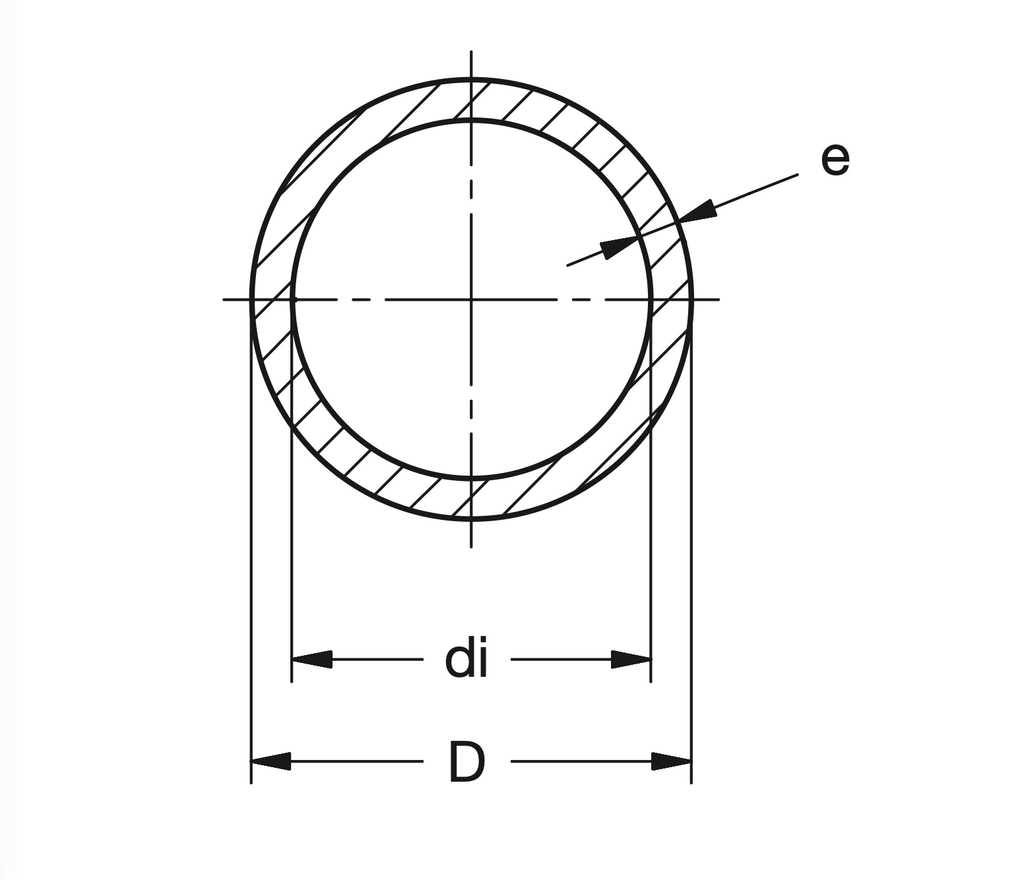

Geometric Properties
Dimensions and tolerances according to DIN8061/62 (Pressure pipes), DIN EN ISO
1452 (Water supply and drainage water), DIN EN ISO 15493 (Industrial).

Operating pressure
SDR13.6 = PN16 (20°C / 1.6 MPa)
SDR21 = PN10 (20°C / 1.0 MPa)

Type
All pipes with plain ends.

Certification
PVC-U pipes are subject to frequent internal and external quality controls. ZP 1.1.1 of DIN CERTCO and DVGW GW 335-A1.

Delivery
The standard warehouse pipe length is 5 meter rods. Due to the limitation of standard package delivery we will cut the pipes in max 2,5 meter pieces. Other lengths on request but cannot exceed 2,5 meters. Full length 5 meter pipes can be picked up from our warehouse in Vienna.
