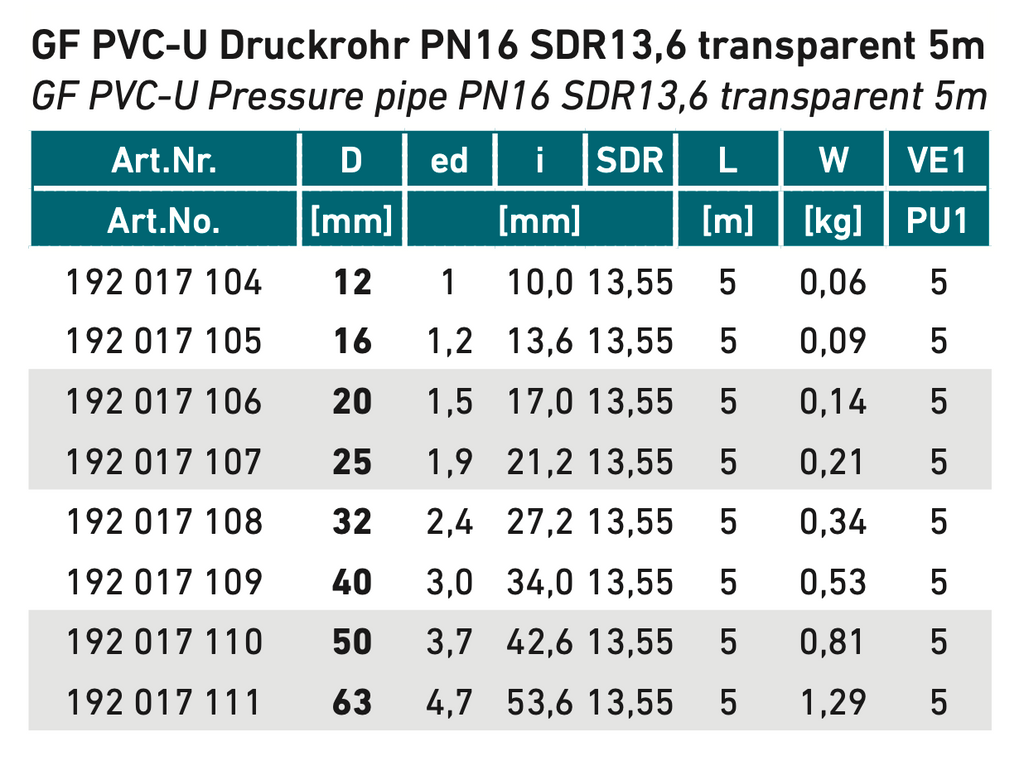

PN16 SDR13.6

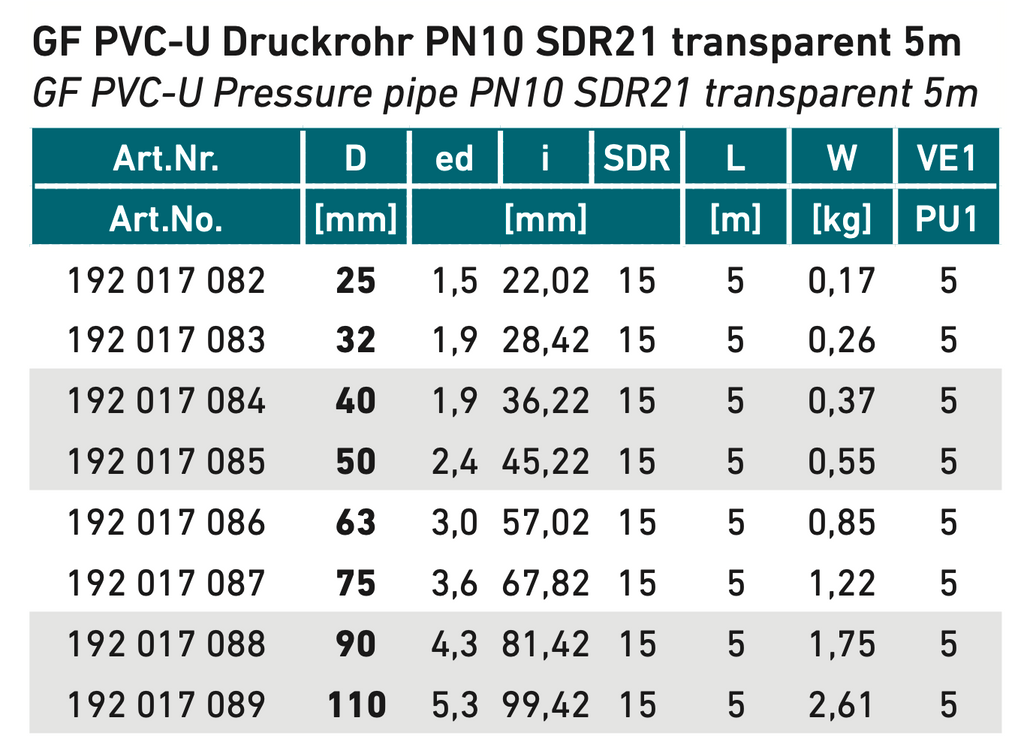

PN10 SDR21

price per meter (webshop: 1pcs = 1m)

Model:

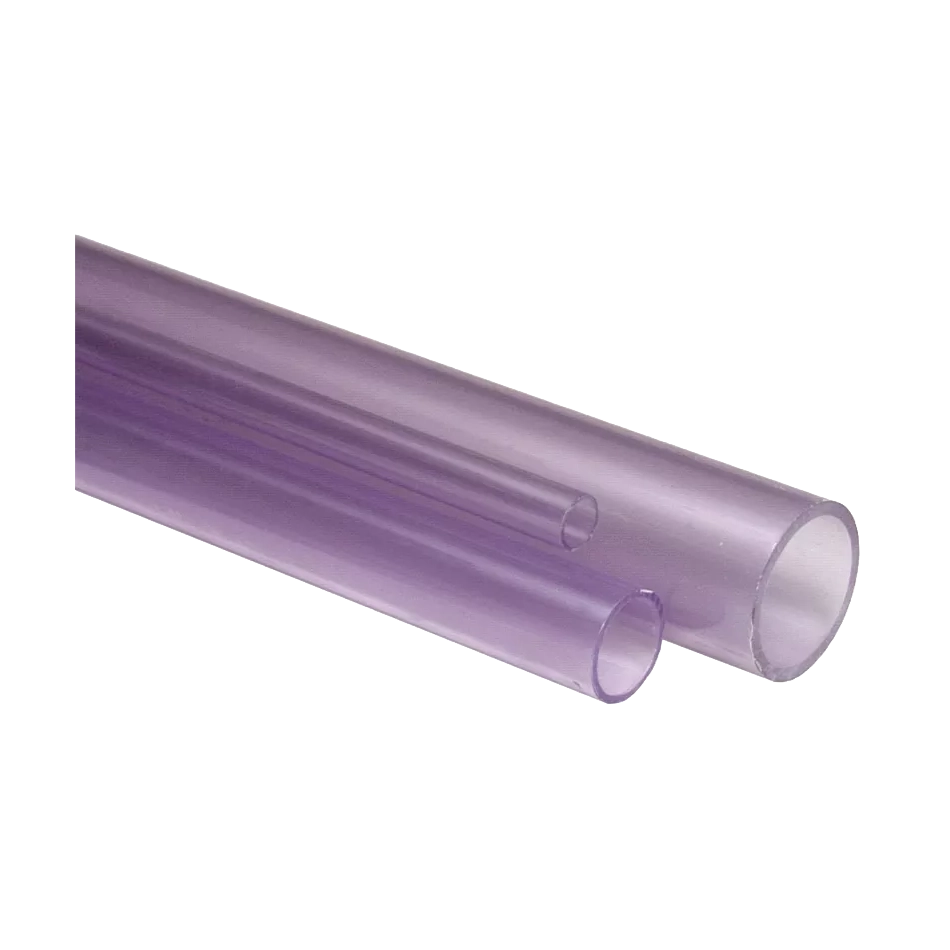

Material: PVC-U

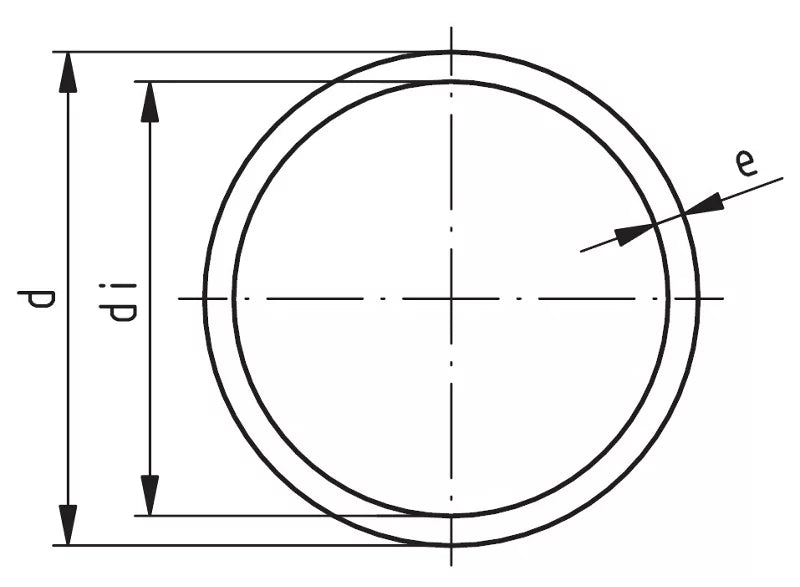

Dimension: acc. to DIN 8062
Colour: transparent - Transparency depends on outer diameter and wall thickness! Chemicaland thermical stress can cause discolouration
Pipe length: 5000mm, with plain ends
Approval: food grade, with declaration of conformity acc. EU 10/2011 and EU 1953/2004, Approval on request
Attention: Pressure rates refer to operating temperatures at 20°C. Higher temperatures and aggressive flow media reduce pressure load (see above DIN and our technical documentation). Pressure load capacity has to be determined in consideration with safety demands of the respective applications and calculated in accordance.
Dimensional variatios of wall thickness not acc. to DIN 8062

Delivery
The standard warehouse pipe length is 5 meter rods. Due to the limitation of standard package delivery we will cut the pipes in max 2,5 meter pieces. Other lengths on request but cannot exceed 2,5 meters. Full length 5 meter pipes can be picked up from our warehouse in Vienna.
